    19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier

    Ask Lasest Price
    Brand Name : Vistron Audio, support OEM/ODM
    Model Number : DSP-1000
    Certification : CE, ROHS, FCC, UL, as your request
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union,Paypal
    Supply Ability : 10000 pcs per month
    Delivery Time : 40-50 days
    • Product Details
    • Company Profile

    19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier

    19 Inch Rack Mount Design Class D Power Amplifier 2U Height Professional DSP Subwoofer Audio Amplifier with 12V Trigger

    Features of the HiFi Subwoofer DSP audio amplifier

    1.2U, high efficiency, class D design producing over 1000W of RMS power.

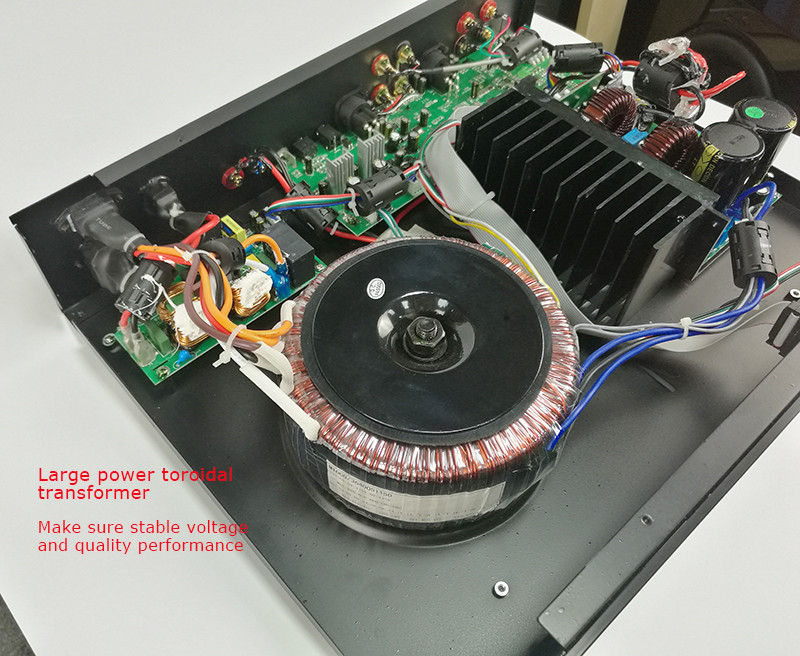

    2.Large toroidal transformer to provide stable power supply.
    3.This subwoofer power amplifier Built-in DSP, support program EQ setting by PC software and amplifier function button.
    4.Firmware updates can be uploaded via the USB connector on PC.
    5.Programming navigation control,used to scroll through the display menus, change setting and program the DSP controller. Offers kinds of EQ presets designed specifically for different speakers available.
    6.Multi function of DSP: Volume control,subsonic control,crossover/frequency,corssover/slop,preset mode, phase control,auto off setting,mode select of USB and LFE, trigger selection of on and off,memory store and recall.
    7.Support further customization, provides a 10-band parametric EQ to optimize sonic performance in any space.
    8.Inputs include left/right high-level binding posts for use with speaker output signals, left/right RCA and Left/right balanced XLR's.
    9.Offers kinds of EQ presets designed specifically for different speakers available.
    10.The HIFI subwoofer power amplifier with Luxury aluminum front panel and display.
    11.2 rack mout ears are provided for rack mounting.

    Specification of the subwoofer power amplifier:

    Product name DSP-1000, solid subwoofer power amplifier
    Output power 1000 watts at 4ohm
    THD at 1000W (4 ohm) 0.07%
    THD at 1W (4 ohm) 0.08%
    S/N Ratio 100 dB Sub mode, 90 dB LFE mode
    Output noise 1.5 mV Sub mode, 2 mV LFE mode
    Input sensitivity 220 mv
    Frequency response

    Sub mode: 10-204 Hz (adjustable subsonic and corssover)

    LFE mode: 10-2000 Hz (adjustable subsonic)

    High level input 2.6 V
    Line output 200 mV (gain of 0 dB)
    Product working voltage AC 110/240V switchable
    Auto on sensitivity 3.2 mV
    Auto shutdown time Adjustable from 5 to 30 mins, 5 mins increments
    Standby power <0.5W
    Panel material Aluminum
    Net weight 12. 4 KGs
    Dimension 1 W425.5 X H89 X D368.5 mm (without feet and rack brackets)
    Dimension 2 W483 X H101.5 X D368.5 mm (with feet and rack brackets)

    DSP Specification

    Volume Adjustable, -60 to + 10dB
    Subsonic filter Adjustable, 24dB per octave, 20.3 to 40.5 Hz
    Crossover frequency Adjustable, 39.4 to 204 Hz
    Cross slope Adjustable, 12dB-48dB per octave, 6dB increments
    User EQ 9 independent third frequencies (19.7 Hz - 125 Hz) with a -6dB/+3dB range
    DSP presets 7 EQ presets set in factory (depends on the application)
    Phase Adjustable from 0 to 315°, 45° increments
    Mode Sub (crossover) or LFE
    Display mode Enabled or disabled after 30 minutes of inactivity

    Mode Select Switch
    STEREO MODE
    If you connect one or two pairs of speakers to the amplifier, pleace the switch in the "STEREO" position.
    Note: For playing 2 pairs of speakers (A plus B), make sure each speaker has an impedance of 8ohm or greater.
    BRIDGE MODE
    When set to "Bridge" mode, the amplifier is a signal channel mono amplifier.
    For bridge mode, playing right and left together as mono output, plug RCA cables in to Right and Left at main input.
    High-level inputs
    For the use of a 2.1 configuration, the "high level speaker" inputs are used to connect an external stereo amplifier and a pair of stereo speakers to these terminals.
    The external amplifier manages the stereo speakers. The amplifier A 1000 supplies the subwoofer and allows the DSP management.

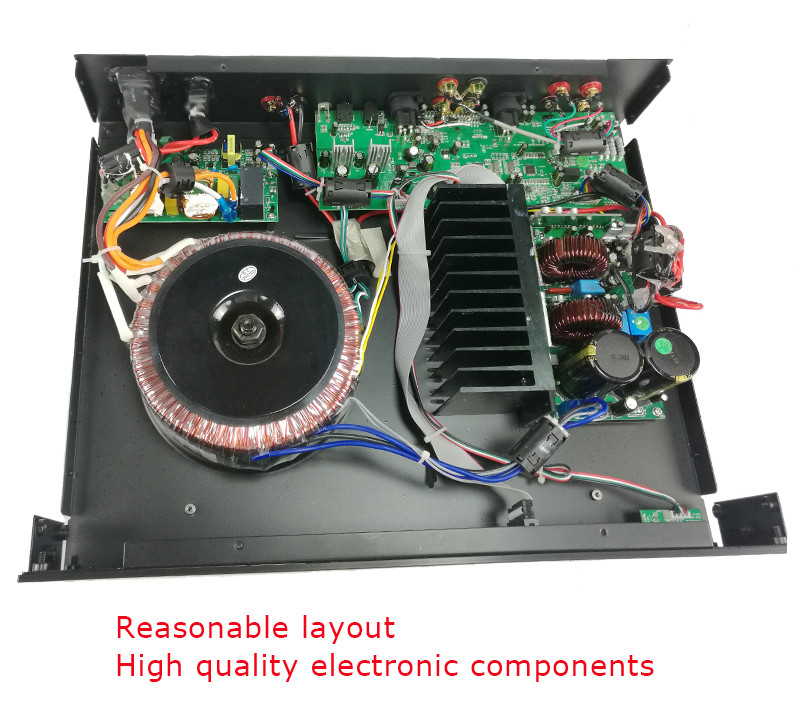

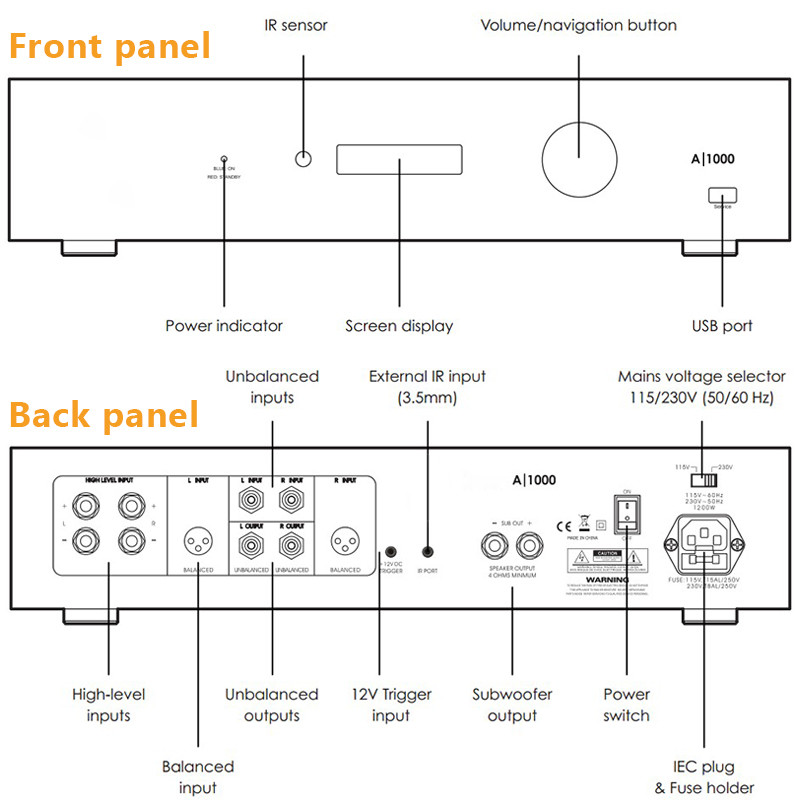

    Pictures of the subwoofer power audio amplifier:

    19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier19 Inch Rack Mount Home Audio Subwoofer Amplifier 2U Height DSP Class D Power Amplifier
