    1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module

    Ask Lasest Price
    Brand Name : Vistron Audio, support OEM/ODM
    Model Number : SUB-1000T
    Certification : CE, ROHS, FCC, UL, as your request
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union,Paypal
    Supply Ability : 20000 pcs per month
    Delivery Time : 40-50 days
    • Product Details
    • Company Profile

    1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module

    Features of the plate subwoofer Power Amplifier

    *1000 Watts RMS Class-D power amplifier plate

    *2 XLR-1/4” combo and 2 RCA inputs, 2 RCA (through) outputs

    *Over current and short circuit protection

    *Sturdy and reliable subwoofer plate amplifier

    *Low distortion audiophile sound

    *Adjustable low pass crossover

    *High and low level inputs/outputs

    *Auto on/off

    *Toroidal power supply transformer

    Specification of the plate audio power amplifier:

    Product name Plate subwoofer power amplifier
    Output power 1000 Watts RMS, 4ohm
    Peak output power 2000 W
    THD < 0.05% (@ 1kHz)
    S/N Ratio > 90dB
    output noise < 1mv
    Input sensitivity 580 mv
    Frequency response 20-200 Hz
    Work efficiency more than 85%
    Class type Home use Class D amplifier plate for subwoofer
    Product working voltage AC 110-240V/selectable
    Protection Anti-clipping protection circultry
    Input methods 2 XLR-1/4” combo and 2 RCA inputs
    Finish color Black, Grey
    Panel material Aluminum or iron
    OEM Custom design plate power amplifier

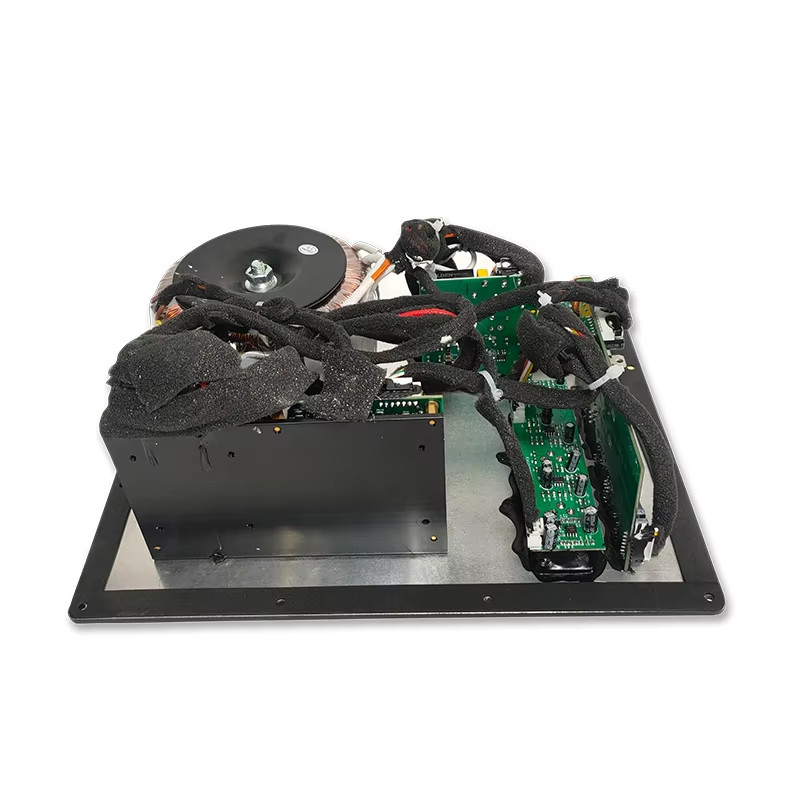

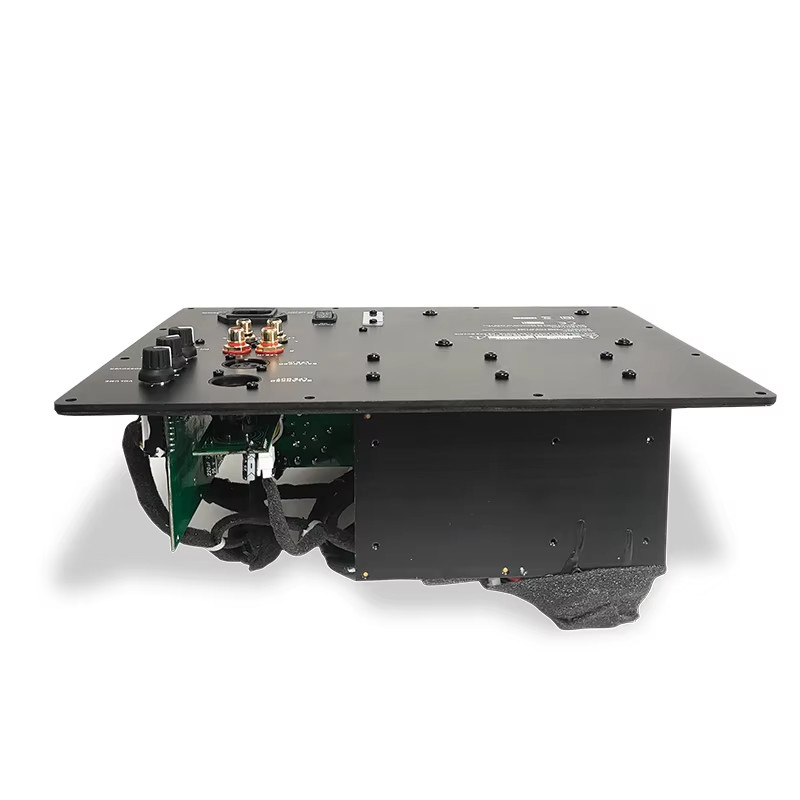

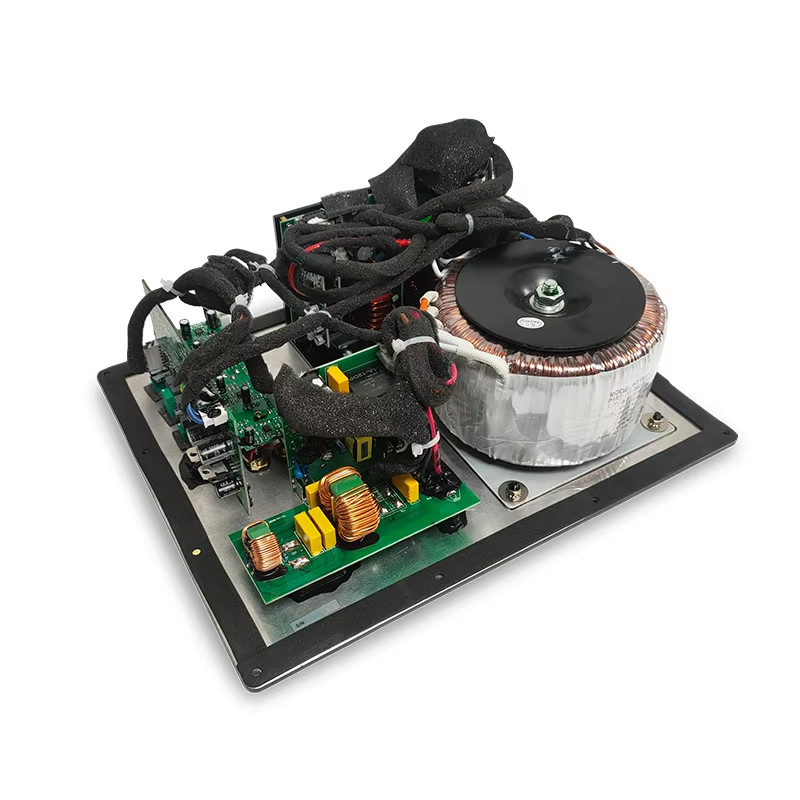

    Pictures of the home plate subwoofer audio power amplifier:

    1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module1000 Watts Class D Plate Power Amplifier Custom Mono Amplifier Module
